WORK BENCH - YT-5555

YATO YT‑5555 is an adjustable work bench / paint stand for panels and body parts, with height and width adjustment and a load capacity from 10 kg up to 150 kg depending on position.

Key specifications

• Symbol: YT‑5555.

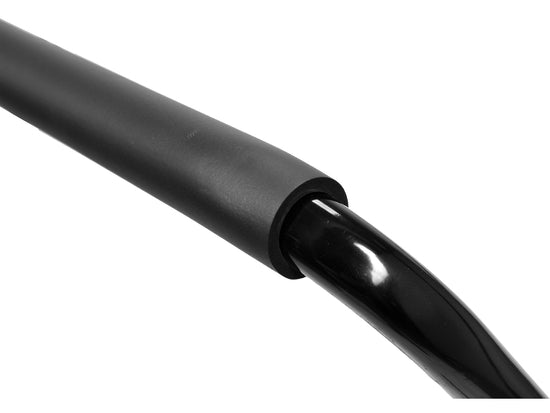

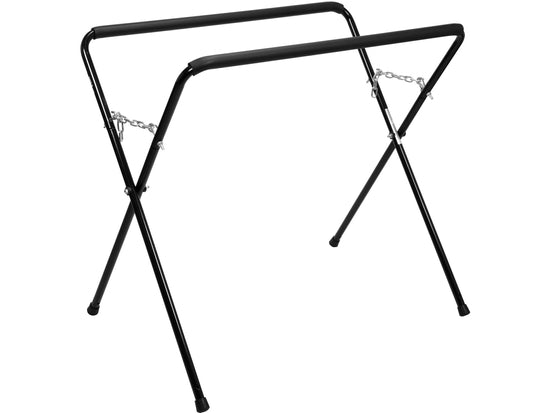

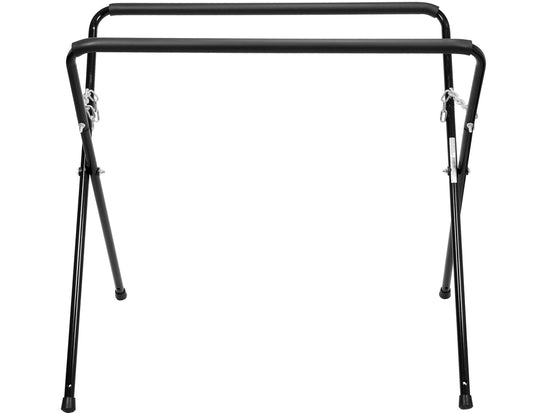

• Construction: Folding, X‑frame stand made from carbon / mild steel with protective rubber or foam pads on the top crossbars.

• Height range: Approx. 500–1000 mm between lowest and highest working positions.

• Work surface width: Adjustable between about 850 mm (low position) and 450 mm (high position); overall support width around 1100 mm.

• Load capacity:

  • Lowest position: max 10 kg, width about 85 cm, height about 50 cm.

  • Highest position: max 150 kg, width about 45 cm, height about 100 cm.

• Weight of stand: About 5.8–7.0 kg.

Features and usage

• Designed as a paint / panel stand for doors, bonnets, bumpers and glass or body parts in automotive and workshop environments.

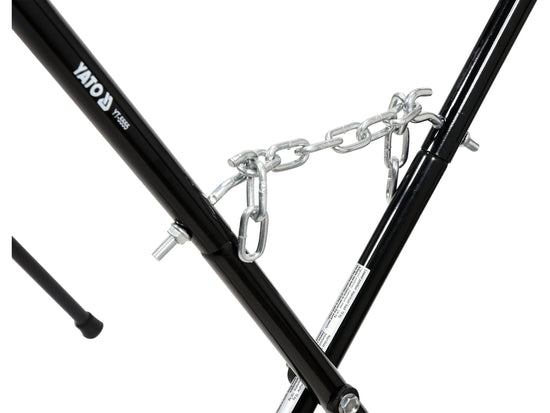

• Adjustable chains and frame allow quick change of height and support spacing; the same number of chain links must be used on both sides for stability and safety.

• Compact folding design makes it easy to store and transport while still providing a stable support for sanding, painting and assembly work.
