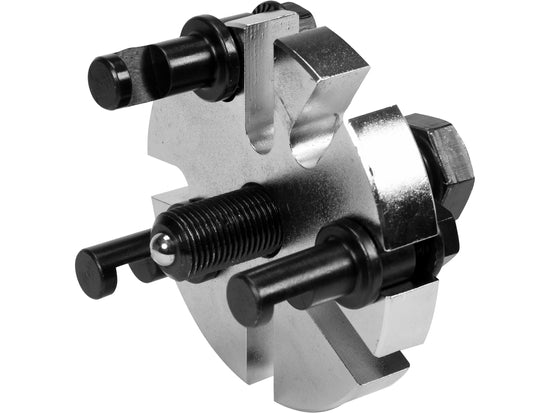

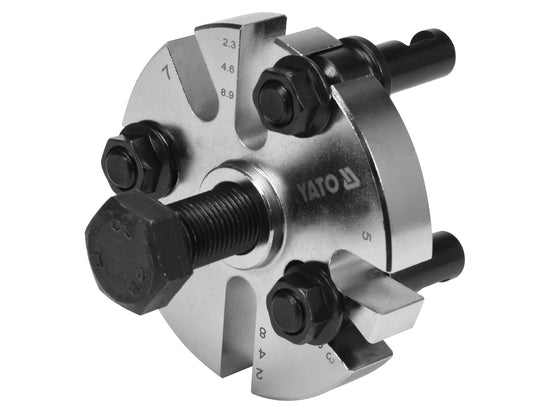

Universal Timing Pulley Puller 60–90mm, 3-Arm

This YATO universal pulley puller is designed for removing timing wheels and gears without damaging them. Its adjustable three-arm design provides a working range of 60–90 mm, while eight positioning slots allow the arms to be configured to suit different mounting positions. A grade 8.8 centre screw and 24 mm operating wrench size complete the tool for automotive timing-system servicing.

Key features

• 60–90 mm working range for compatible timing wheels and gears.

• Three-arm design with adjustable positioning.

• Eight positioning slots for adapting the arms to different applications.

• Grade 8.8 centre screw.

• Operated using a 24 mm wrench.

• Designed to remove compatible timing wheels and gears without damage.

Basic details

• Product name: YATO Universal Timing Pulley Puller

• Model / symbol: YT-06340

• Series: GRD

• Number of arms: 3

• Working capacity: 60–90 mm

• Number of positioning slots: 8

• Adjustment: Yes

• Operating wrench size: 24 mm

• Centre screw strength class: 8.8

• Intended application: Removal of timing wheels and gears.

Sizes and contents

• 1 × YATO YT-06340 universal three-arm pulley puller.

• Working range: 60–90 mm.

• Operating wrench size: 24 mm.

Design and operation

• Adjustable arms accommodate different positions on compatible timing wheels and gears.

• Eight positioning slots provide flexibility when setting up the puller.

• Centre screw applies the pulling force during removal.

• Designed for automotive applications across multiple vehicle makes.

Typical applications

• Removing compatible timing pulleys.

• Removing timing gears.

• Automotive timing-system maintenance and repair.

• Workshop disassembly tasks requiring a three-arm puller within the 60–90 mm working range.
