Rechargeable Thermal Imaging Camera 96x96 / 240x240 Super Resolution

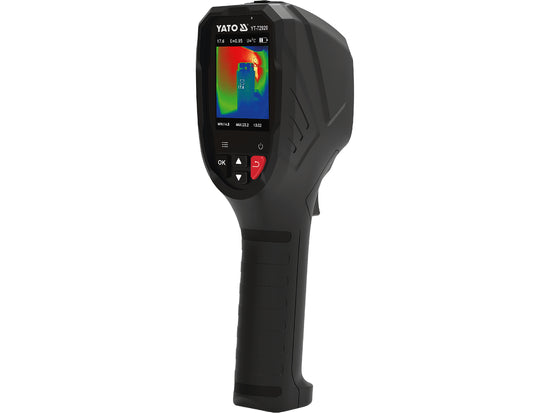

This YATO rechargeable thermal imaging camera is designed for quick thermal inspections in confined spaces, on site and around the home. Its 96 × 96-pixel VOx thermal detector uses Super Resolution technology to produce enhanced 240 × 240-pixel thermal images, with a refresh rate of up to 18 Hz. Two measurement ranges cover temperatures from -20°C to 550°C, while thermal, visible-light and blended image modes help locate temperature differences. A 2.4" colour LCD, built-in storage and USB-C charging provide a compact, self-contained inspection tool.

Basic details

• Product name: YATO Rechargeable Thermal Imaging Camera

• Model / symbol: YT-72920

• Thermal detector: Uncooled VOx microbolometer

• Native thermal resolution: 96 × 96 pixels

• Enhanced thermal image resolution: 240 × 240 pixels using Super Resolution

• Refresh rate: Up to 18 Hz

• Display: 2.4" colour LCD, 240 × 320 pixels

• Visible-light camera resolution: 640 × 480 pixels

• Field of view: 50° × 50°

• Focus: Fixed

• Weight: 249.5 g

• Dimensions: 208 × 60.9 × 75.9 mm.

Measuring range and functions

• Temperature range, mode 1: -20°C to +150°C.

• Temperature range, mode 2: +100°C to +550°C.

• Measurement accuracy: ±2°C or ±2%, whichever is greater.

• Listed measurement sensitivity: 0.1°C.

• Thermal sensitivity (NETD): ≤60 mK at 25°C.

• Measurement functions: Centre-point temperature and maximum/minimum temperature detection.

• Adjustable emissivity: 0.01–1.00.

• Image modes: Thermal, visible-light with temperature readings, and blended thermal/visible-light imaging.

• Five colour palettes: Rainbow, iron red, warm red, warm white and warm black.

Recording, battery and charging

• Internal memory: 8 GB eMMC, with approximately 6.5 GB available to the user.

• Image format: JPG.

• Video format: MP4.

• Data transfer: USB connection to a computer.

• Battery: Built-in 3.7 V, 2000 mAh lithium-ion battery.

• Charging connection: USB Type-C.

• Charging input: 5 V DC, 1 A.

• Automatic shut-off: Selectable 5-minute or 20-minute setting, or disabled.

• Menu languages: English, Polish, Ukrainian, German, Italian and Chinese.

How the thermal camera works

• Detects temperature differences and displays them as a thermal image.

• Super Resolution enhances the native 96 × 96-pixel thermal image to 240 × 240 pixels.

• Centre-point and maximum/minimum temperature functions provide readings during inspection.

• Blended imaging combines thermal information with visible-camera detail.

• Images and videos can be saved to internal memory and transferred to a computer by USB.

Typical applications

• Locating thermal bridges and areas of heat loss in buildings.

• Checking heat distribution in prepared underfloor heating systems.

• Helping identify potential underfloor heating leaks or circulation issues through temperature differences.

• General on-site and household thermal inspections.
