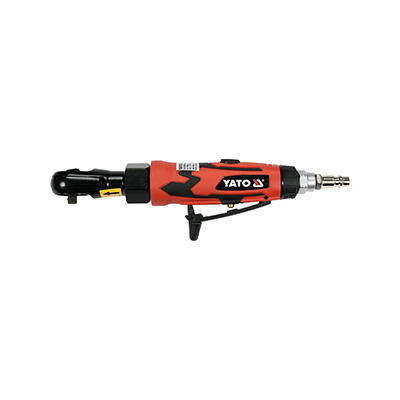

Pneumatic ratchet

Pneumatic ratchet 1/4" 27nm- 1/2" 80nm Composite housing

$77.00

Pneumatic ratchet powered by a stream of compressed air under pressure. Designed for work under heavy loads in vulcanizationand automotive plants - quick assembly and disassembly of threaded connections and components. Replaces hand-operated...

AfterPay now available

Size: 1/4" 27nm

1/4" 27nm
1/2" 80nm

apple paymastervisapaypalgoogle payafterpayzip
Ask a Question
SKU: YT-09795
Availability : In Stock Pre order Sold Out
Categories: Air Tools & Workshop All Products Pneumatic Tools Price 40 and Above Product Over 40 Tools
Tags: Pneumatic tools tools
Description

Pneumatic ratchet powered by a stream of compressed air under pressure. Designed for work under heavy loads in vulcanization
and automotive plants - quick assembly and disassembly of threaded connections and components. Replaces hand-operated ratchets, reducing service time
and facilitating work in hard-to-reach places.

  • torque: 27Nm
  • pressure: 0.63MPa
  • capacity: 113 l/min
  • rotational speed: 180 rpm
  • smooth regulation of rotational speed
  • right/left rotation switch
  • 360° rotating air exhaust
  • light, composite housing and small dimensions ensure comfortable work
  • the lock in the switch protects against unintentional activation
  • clip securing the cap against unhooking
  • standard connection
  • spindle size: 1/4″ (6.3mm)

Series GRF
Length 183mm - 285mm
Kit contents air ratchet, hose connector
Tool holder type driver
turnover
180 min⁻¹ - 160 min⁻¹
Housing material composite
Mass 0.5 kg - 1.4 kg
sound pressure 96.0 ± 3.0dB(A)
Acoustic power 107.0 ± 3.0dB(A) -105.0 ± 3.0dB(A)
Rotation direction switch Yes
Tool holder size 1/4" (6.3mm) - 1/2" (12.7mm)
torque 27Nm - 80Nm
Vibrations 3.1 ± 1.5 m/s² - 2.6 ± 1.5 m/s²
Air flow required 113 l/min - 142 l/min
working pressure 0.63MPa
Air connection diameter (PT) standard
Speed ​​adjustment Yes
Rotating air exhaust 360˚
Inner diameter of the air supply hose 3/8" (9.5mm)
Additional Information
Size

1/4" 27nm, 1/2" 80nm
