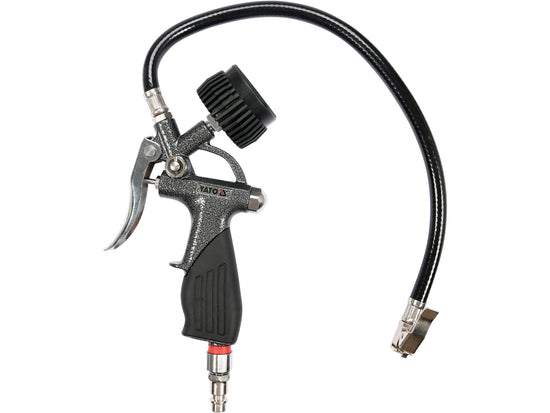

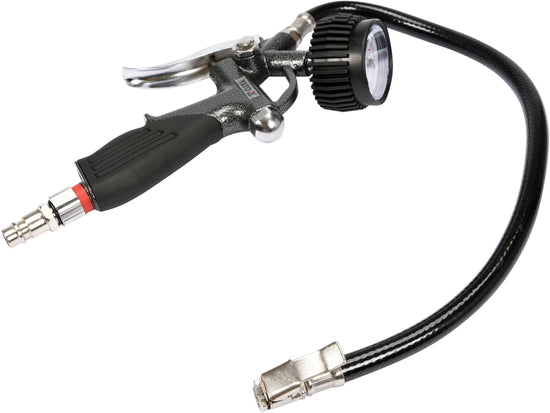

INFLATING GUN WITH MANOMETER -YT-23701

INFLATING GUN WITH MANOMETER – YATO YT-23701

Brand: YATO
Model: YT-23701
Type: Pneumatic inflating gun with integrated pressure gauge (manometer)

Key Features

• Professional inflating gun for pumping and checking pressure in tyres and other inflatable items.

• Body made from lightweight aluminium with non‑slip outer coating for a secure grip.

• Manometer protected by a rubber casing to improve durability in workshop conditions.

• 1/4" rotating pneumatic connection helps prevent hose twisting and makes positioning easier.

Technical Specifications

• Maximum working pressure: 0.6 MPa (approx. 6 bar / 87 psi).

• Manometer diameter: 48 mm.

• Hose length: 440 mm (approx. 40–44 cm).

• Air connection: Standard 1/4" PT pneumatic fitting.

• Material: Aluminium body.

• Acoustic pressure level: 89.0 ± 2.5 dB(A).

• Acoustic power level: 100.0 ± 2.5 dB(A).

• Vibration level: < 2.5 m/s².

• Approximate weight: 0.37 kg.

Applications

• Inflation and pressure control of tyres and other pneumatic systems in workshop and garage environments.

• Suitable for use with air compressors in automotive, service station and DIY setups.
