Description

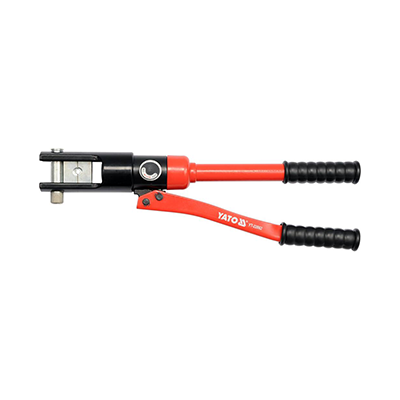

Hydraulic, manual press for crimping terminals
- intended for effective crimping of terminals on electrical cables or for tightening ropes
- thanks to the hydraulic cylinder, crimping large terminals does not require any effort
Features characteristic of the YATO Prague brand:
- stop pin locking the dies
- split crimping die
- piston
- rotating actuator head
- actuator main valve
- movable actuator arm
- handle cover
- crimping range: aluminum: 16-240 mm2, copper: 16-300 mm2
- length: L=470 mm
- pressure: 18 -20T
- size of clamping jaws (mm 2 ): 16; 25; 35; 50; 70; 95; 120; 150; 185; 240; 300
| Symbol | YT-22862 |
| Series | GRG |
| Application | electrical, crimping of ends on electric cables, crimping of steel ropes |
| Length | 470mm |
| Compatible with(s) | YT-22865 |
| Pressure force | 18-20 t |
| Aluminum clamping range | 16-240 mm² |
| Clamping range copper | 16-300 mm² |
| Clamping jaw size | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm² |
Hydraulic press, manual for crimping terms 16-300mm2
$120.00
