Digital Caliper 150mm

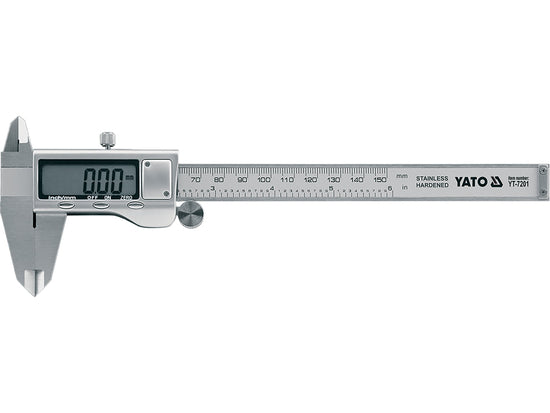

This YATO digital caliper is designed for external, internal and depth measurements across a 0–150 mm measuring range. Made from stainless steel, it features an LCD display with metric and imperial readings. With a 0.01 mm resolution and ±0.02 mm measurement accuracy, it provides clear electronic readings for dimensional measurement work.

Basic details

• Product name: YATO Digital Caliper 150 mm

• Model / symbol: YT-7205

• Measuring range: 0–150 mm

• Material: Stainless steel

• Display: Liquid crystal display (LCD)

• Reading type: Electronic

• Measurement accuracy: ±0.02 mm

• Resolution: 0.01 mm

• Measurement units: Metric and imperial

• Measuring system: Linear capacitive

• Power supply: One 1.55 V SR44 silver battery

• Operating temperature: 5–40°C.

Measuring range and functions

• Measures dimensions from 0 to 150 mm.

• Supports external measurements.

• Supports internal measurements.

• Supports depth measurements.

• Provides both metric and inch readings.

How the digital caliper works

• Uses a linear capacitive measuring system to produce electronic readings.

• The LCD displays the measured dimension.

• External jaws, internal jaws and the depth measuring function allow different types of dimensions to be checked.

• Powered by a single 1.55 V SR44 battery.

Typical applications

• Checking external dimensions of parts and components.

• Measuring internal dimensions of openings.

• Measuring the depth of holes and recesses.

• Dimensional checks requiring metric or imperial readings.
