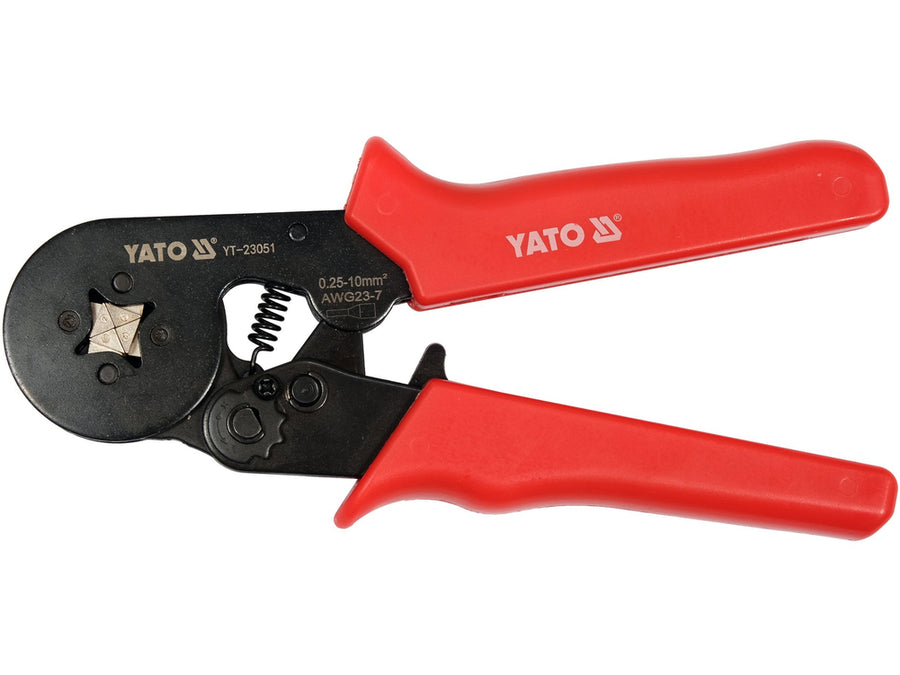

Cable-End Sleeve Crimping Pliers 175mm – 0.25–10mm²

Product description

These 175 mm cable-end sleeve crimping pliers are designed for crimping bootlace ferrules onto electrical wires. Featuring a locking mechanism and a four-element crimping jaw, they provide quick, precise and uniform compression of the sleeve connector. The blackened carbon steel body offers corrosion resistance, while the chromium-vanadium steel jaws provide durability.

Basic details

• Product name: YATO Cable-End Sleeve Crimping Pliers

• Model / symbol: YT-23051

• Overall length: 175 mm

• Crimping capacity: 0.25–10 mm²

• Connector type: Cable-end sleeves / bootlace ferrules

• Body material: #45 carbon steel

• Jaw material: Chromium-vanadium steel (CrV)

• Surface finish: Blackened / oxidised for corrosion resistance

• Handle material: Polypropylene (PP) and thermoplastic rubber (TPR)

• Mechanism: Locking mechanism for controlled crimping

Sizes and compatibility

• Suitable for cable-end sleeves used with wire cross-sections from 0.25 to 10 mm².

• Four-element crimping jaw compresses the sleeve evenly around the wire.

• Designed specifically for sleeve connectors rather than general-purpose terminal crimping.

How the crimping pliers work

• The sleeve connector is positioned in the crimping jaw with the prepared wire inserted.

• Squeezing the handles closes the four-element jaw around the sleeve, producing a uniform crimp.

• The locking mechanism supports controlled operation during the crimping process.

Typical applications

• Crimping bootlace ferrules for electrical wiring and connection work.

• Preparing wire ends for terminal connections in control panels and electrical equipment.

• Electrical assembly, maintenance and repair tasks requiring cable-end sleeve connectors.
