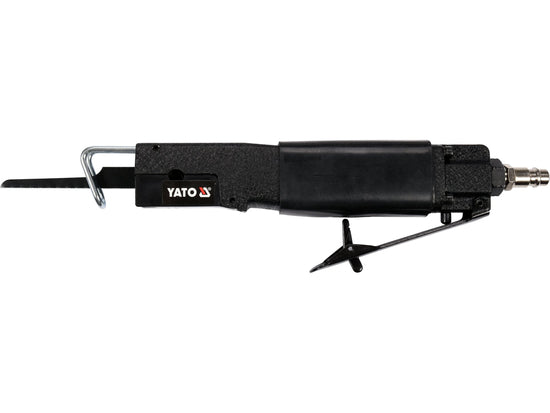

Air Body Saw with 2 Blades

This YATO pneumatic body saw is designed for cutting metal, plastic and wood in indoor working environments. Powered by compressed air, it features an aluminium housing, a depth-limiting guide and a 10 mm blade stroke. With a cutting speed of 9,000 strokes per minute, it handles material thicknesses up to 2 mm in metal and 6 mm in wood or plastic. Supplied with a hose connector and two blades: one 24T and one 32T.

Basic details

• Product name: YATO Air Body Saw

• Model / symbol: YT-09955

• Power source: Compressed air

• Housing material: Aluminium

• Cutting speed: 9,000 strokes per minute

• Blade stroke length: 10 mm

• Maximum working pressure: 0.63 MPa

• Required air flow: 170 L/min

• Air supply hose internal diameter: 3/8" (9.5 mm)

• Air connection: Standard

• Weight: 0.67 kg

• Intended environment: Indoor use.

Cutting capacity and contents

• Maximum metal cutting thickness: 2 mm

• Maximum wood cutting thickness: 6 mm

• Maximum plastic cutting thickness: 6 mm

• Set includes:

  • 1 pneumatic body saw

  • 1 hose connector

  • 1 × 24T saw blade

  • 1 × 32T saw blade.

How the air body saw works

• Compressed air powers the reciprocating blade movement.

• The blade operates with a 10 mm stroke at a cutting speed of 9,000 strokes per minute.

• A depth-limiting guide helps control cutting depth.

• Requires an air supply providing the specified pressure and airflow.

Typical applications

• Cutting metal up to 2 mm thick.

• Cutting plastic up to 6 mm thick.

• Cutting wood up to 6 mm thick.

• Indoor cutting work using a compressed-air supply.
