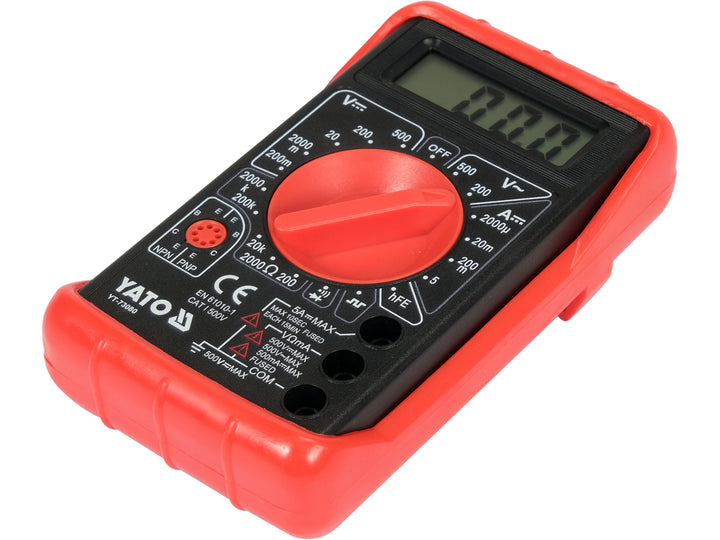

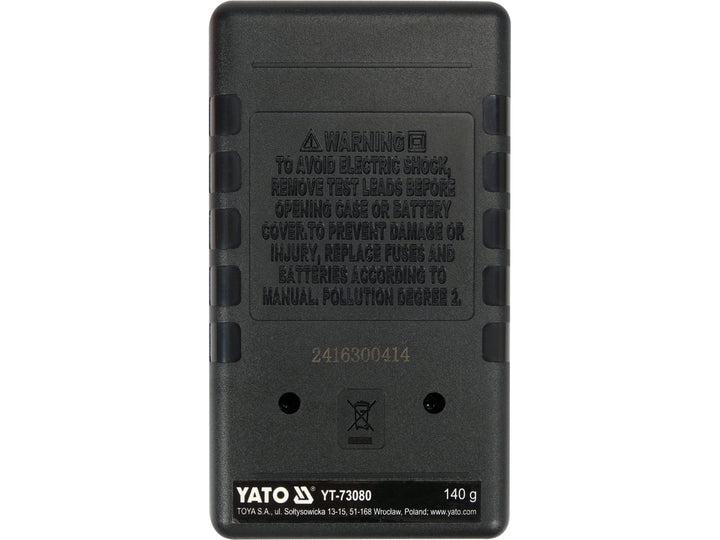

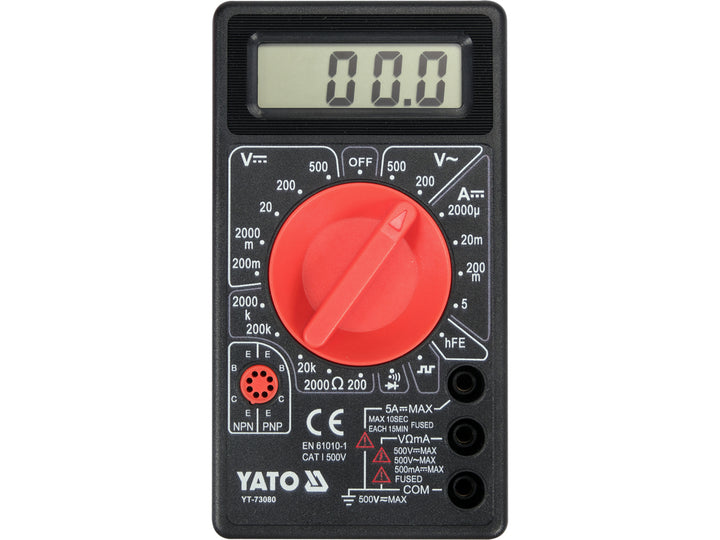

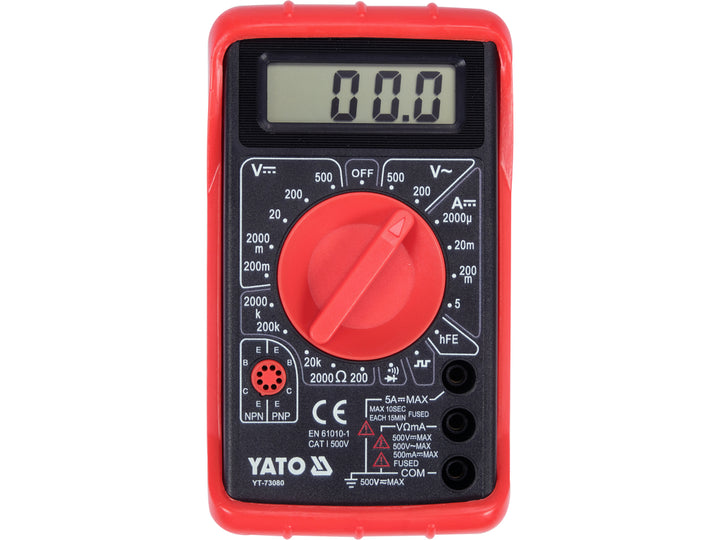

DIGITAL MULTIMETER - YT-73080

$55.00 $30.00 SAVE 45%

DIGITAL MULTIMETER

AfterPay now available

apple paymastervisapaypalgoogle payafterpayzip
Ask a Question
SKU: YT-73080
Availability : In Stock Pre order Sold Out
Categories: All Products Automotive Tools Diagnostic & Test Tools Price 40 and Above
Tags: Diagnostic & Test Tools new yato products
Description
Specifications Recommended goods Opinions
Brand Yato
Entity responsible for this product in the EU TOYA S.A.More
Series GRF
Alternating voltage 0-500 V a.c.
Direct voltage 0-500 V d.c.
Direct current 0-5 A
Resistance 0-2 MΩ
Transistor HFE measurement PNP, NPN
Continuity test 0-30 Ω
Conduction test yes
Diode test yes
Rectangular signal generator 50 Hz
Dimensions 126x70x24 mm
Material ABS
Display type LCD
Display range 1999 mm
Sampling frequency 2-3 times per second
Bell ring yes
Sine wave generator 5 V p-p
Power supply energy source, cell type 9V; 6F22
Working temperature range 0~40 ˚C
Storage temperature -10 ~ +50 ˚C
Weight 0.14 kg
Application electric
Symbol YT-73080
