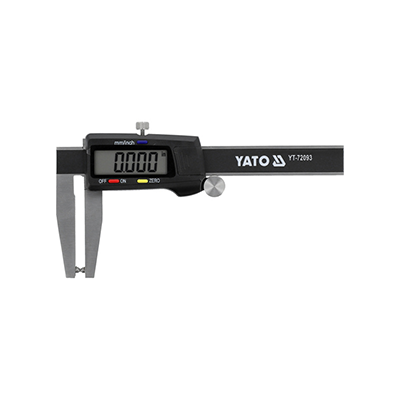

Digital Brake Disc Caliper 0–70mm, 55mm Jaws

This YATO digital brake disc caliper is designed for measuring brake disc thickness. Made from stainless steel, it features a 0–70 mm measuring range, 55 mm jaws and an LCD display with readings in millimetres or inches. With a measurement accuracy of ±0.03 mm, it is suited to brake disc dimensional checks during servicing and inspection. Manufactured in accordance with DIN 862.

Basic details

• Product name: YATO Digital Brake Disc Caliper 0–70 mm

• Model / symbol: YT-72093

• Material: Stainless steel

• Measuring range: 0–70 mm

• Jaw length: 55 mm

• Measurement accuracy: ±0.03 mm

• Display: LCD

• Measurement units: Millimetres or inches

• Standard: DIN 862

• Intended use: Measuring brake disc thickness.

Measuring range and features

• Measures brake disc thickness within a 0–70 mm range.

• Features 55 mm measuring jaws.

• Displays readings in millimetres or inches.

• Listed measurement accuracy of ±0.03 mm.

How the digital caliper works

• The measuring jaws are positioned across the brake disc to measure its thickness.

• The LCD displays the measured dimension.

• Readings can be displayed in millimetres or inches.

Typical applications

• Measuring brake disc thickness.

• Brake disc dimensional checks during vehicle servicing.

• Workshop inspections requiring metric or imperial thickness readings.
