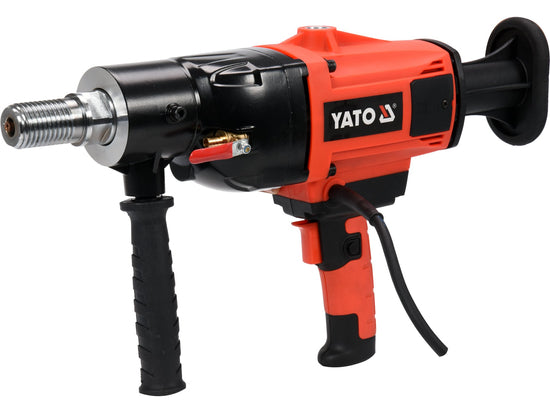

Diamond Drill 2200W

Important note

• Pick up only.

Professional 2200 W diamond core drill for handheld or stand‑mounted wet drilling in reinforced concrete, concrete and natural stone.

Key functions

• Power: 2200 W, speed range 0–1200 min⁻¹ for efficient heavy‑duty core drilling.
• Drilling diameter: 30–180 mm (technical range 12–180 mm, bit length 150–450 mm), ideal for holes for 110 mm and 125 mm sewer pipes.
• Designed for drilling in reinforced concrete, concrete, natural stone and asphalt using water‑cooled diamond core bits.

Construction & drive system

• Tool holder: 1 1/4" UNC – industry‑standard thread compatible with most diamond core bits.
• Mechanical centrifugal clutch (5 springs) ensures smooth operation and reduces kickback when hitting reinforcement bars.
• Water cooling with 1/4" (6.3 mm) water outlet, max water pressure 0.5 MPa, improves drilling speed and extends bit life.
• Can be used freehand or on the supplied stand with gearbox, which facilitates drilling in hard materials and reduces operator effort.

Technical data

• Voltage: 230 V a.c., 50 Hz.
• Drilling diameter: 12–180 mm; recommended working range 30–180 mm.
• Protection grade: IP20; insulation class II.
• Acoustic pressure: 90.0 ± 3.0 dB(A); acoustic power: 103.0 ± 3.0 dB(A); vibrations: 2.90 ± 1.5 m/s².
• Weight: 12 kg.

Set contents & compatibility

• Set includes: drilling rig, additional handle with clamp, stand and rear bracket.
• Compatible diamond core bits: YT‑60371, YT‑60372, YT‑60373, YT‑60374, YT‑60375, YT‑60376, YT‑60377, YT‑60378, YT‑60379.

Application & safety

• Application: cutting electrical boxes in reinforced concrete, drilling through ceilings for pipes and cables, installing cable routes and ventilation ducts.
• Non‑impact operation reduces destructive vibrations, protecting both machine and operator; always use personal protective equipment and follow wet‑drilling safety procedures.
